How to Select a Slurry Pump?
Unlock the secrets to choosing the perfect slurry pump with our detailed guide! Explore essential tips on pump types, materials, and diverse applications tailored to enhance efficiency across various industries.
In the vast landscape of industrial production, slurry pumps serve as core equipment for conveying slurries containing solid particles, playing a critical role in industries such as mining, metallurgy, power, and coal. The stable operation of slurry pumps directly influences the smoothness of entire production processes, from ore pulp conveyance in mining to tailings treatment in metallurgy and desulfurization slurry transmission in power systems. However, as industrial scenarios impose diverse requirements on slurry pumps, the question of Exothermic Welding Materials factorythat best fits specific needs has become a key challenge for many enterprises. The solution lies in deeply understanding the basic performance parameters of slurry pumps and using them as the basis for selection.
1. Flow Rate: The Benchmark for Determining Slurry Pump Conveyance Capacity
Flow rate, representing the quantity of liquid conveyed by a slurry pump per unit time, intuitively reflects the equipment’s "conveyance pulse." When considering how to select a slurry pump, the first step is to accurately match the flow rate with the production demand for slurry conveyance:
Risks of Improper Flow Matching: A flow rate lower than the production need can cause slurry accumulation in pipelines and interrupt the beneficiation process, while an excessively high flow rate not only increases equipment procurement costs but also triggers pump instability, higher energy consumption, and accelerated wear due to deviations from the designed operating conditions. For example, in the ore pulp conveyance link of a mining plant, the flow rate must be calculated based on the processing capacity of the grinding equipment and the requirements of subsequent separation processes. A hundred-ton ore processing line typically requires a conveyance capacity of over a hundred cubic meters per hour, necessitating the selection of a pump type with adjustable flow to adapt to fluctuations in pulp concentration caused by variations in ore properties.
Impact of Particle Concentration: The higher the solid particle content in the slurry, the more significant the (attenuation) of the pump’s actual conveyance capacity. This is because friction between particles and the impeller/housing creates resistance, while the viscosity of high-concentration slurries increases, reducing fluid mobility. Therefore, when conveying high-concentration tailings (e.g., with a concentration exceeding 50%), the theoretical flow parameter should be increased by more than 10% to ensure the pump does not suffer from efficiency drop due to "overload" during actual operation.
2. Head: The Core of Energy Supply for Slurry Pump Selection
Head, defined as the work done by a slurry pump on a unit weight of liquid, symbolizes the equipment’s "energy ladder" for overcoming conveyance height. When determining how to select a slurry pump’s head parameter, one must start from the physical characteristics of the conveyance system:
Multidimensional Calculation of Head Components: In practical applications, head must include vertical lifting height, frictional resistance along horizontal pipelines, local resistance (from elbows, valves, etc.), and pressure differences at equipment inlets/outlets. Take tailings conveyance in the metallurgy industry as an example: if tailings need to be transported from a beneficiation plant to a distant, high-altitude storage yard, the vertical lifting height alone may reach dozens of meters. Adding the frictional losses from long-distance pipelines, the total head requirement often requires precise derivation through hydraulic calculation models. It is crucial to retain a safety margin during selection, typically increasing the theoretical calculation by 10%-20% to prevent insufficient head caused by pipeline scaling or changes in medium properties.
Energy Consumption Trade-off for High Head Requirements: When head requirements exceed conventional ranges, a choice must be made between "single-stage pumps" and "multistage pumps." Single-stage pumps feature simple structures and easy maintenance but have limited head limits, while multistage pumps increase head through impeller series connection but may suffer from efficiency loss, leading to higher energy consumption. For instance, in a power plant desulfurization system requiring a head exceeding 100 meters, selecting a multistage slurry pump requires comparing the efficiency curves of different stage configurations to avoid sacrificing long-term operational economy for high head.
3. Efficiency and Shaft Power: The Key to Energy Consumption Optimization in Slurry Pump Selection
Efficiency and shaft power, core indicators measuring a slurry pump’s energy conversion capability, form the "balance scale" in the selection process. To achieve optimal energy consumption when considering how to select a slurry pump, the following logic must be grasped:
Decisive Role of Efficiency: Efficiency, the ratio of effective power to shaft power, directly affects a company’s electricity costs. Compared to a regular pump (with an efficiency of about 70%), a high-efficiency slurry pump (with an efficiency exceeding 80%) can save several kilowatts of electricity per hour during 8,000 hours of annual operation, yielding substantial long-term energy-saving benefits. During selection, focus on the pump’s "high-efficiency zone"—the range in the flow-head curve where efficiency remains relatively stable—to ensure the actual operating conditions fall within this area and avoid significant efficiency drops due to deviations from the design point.

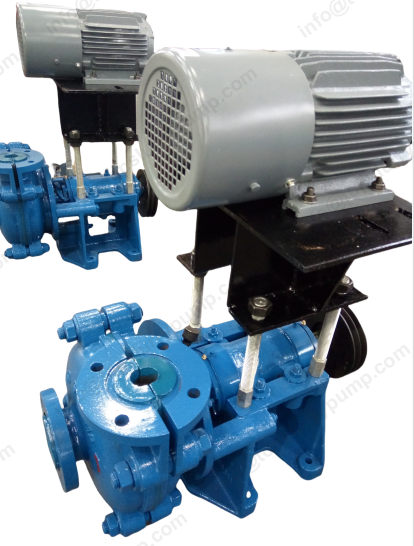

Systematic Matching of Shaft Power: Shaft power depends not only on the pump’s efficiency but also on motor selection and transmission methods. For example, using a variable-frequency motor to drive the pump allows shaft power to adjust dynamically with flow demand, which is more energy-efficient than constant-speed operation. Choices between belt drive or coupling drive also affect overall energy consumption due to differences in transmission efficiency. In a coal mine slurry conveyance system retrofit, replacing a constant-speed slurry pump with a combination of a "high-efficiency pump + variable-frequency motor" achieved an annual power saving rate of over 15%, confirming the importance of shaft power optimization in selection.
4. Rotational Speed: Balancing Wear and Stability in Slurry Pump Selection
Rotational speed, the frequency of impeller rotation, directly influences pump performance but acts as a "double-edged sword." When determining how to select a slurry pump’s rotational speed parameter, one must seek the optimal balance between wear and efficiency:
Impact of Rotational Speed on Equipment Life: High rotational speeds (e.g., above 1,450 r/min) can enhance flow and head but exacerbate impact wear between the impeller and solid particles. Especially when conveying coarse particles exceeding 3 mm in diameter, high speeds may shorten the impeller life by more than half. Conversely, pumps operating at low speeds (e.g., 600-800 r/min), though with slightly weaker conveyance capacity, exhibit significantly reduced wear rates, making them more suitable for long-term continuous operation in scenarios like mine backfill systems.
Dynamic Adaptation of Rotational Speed to Operating Conditions: In production processes with periodic flow fluctuations, a variable-speed slurry pump is preferable. For example, in sludge conveyance at wastewater treatment plants, where sludge concentration varies significantly at different times, adjusting the rotational speed can meet flow demands while reducing wear during low-concentration periods. During selection, verify that the pump’s speed adjustment range matches the magnitude of operational fluctuations to avoid instability caused by insufficient adjustment range.
5. Cavitation Resistance: The Safety Line for Ensuring Stable Slurry Pump Operation
Cavitation resistance, measured by "allowable suction vacuum height" and "net positive suction head (NPSH)", serves as the "safety bottom line" for ensuring pump stability. To avoid cavitation failures when considering how to select a slurry pump, one must control both medium characteristics and installation conditions:
Formation and Hazards of Cavitation: When the vacuum degree at the pump suction port exceeds the allowable value, dissolved gases in the liquid escape to form bubbles. When these bubbles collapse in high-pressure areas, they cause "cavitation impact" on the impeller, leading to honeycomb-like corrosion pits or even fractures on the impeller surface after long-term operation. This phenomenon is particularly common when conveying high-temperature media (such as slurries above 70°C) or in high-altitude areas (with low atmospheric pressure).
Selection Points for Cavitation Resistance Design: When conveying vaporizable media, choose pump types with large NPSH and optimize suction pipeline design—shorten suction pipeline length, increase pipe diameter, and reduce the number of elbows—to lower suction resistance. For example, a chemical plant transporting high-temperature acidic slurry specifically selected a slurry pump with an inducer, which improved the inlet pressure through the inducer’s pre-pressurization effect, reducing NPSH by more than 0.5 meters and effectively solving frequent cavitation issues.
6. Medium Characteristics: The Core of Material and Structure Selection for Slurry Pumps
Beyond basic parameters, the physical and chemical properties of the slurry constitute the "hidden dimension" of selection. To adapt to complex media when considering how to select a slurry pump, focus on the following characteristics:
Particle Size and Hardness: For slurries containing large particles exceeding 5 mm, select pump types with wide impeller passages and fewer blades (e.g., 2-3 blades) to avoid particle blockage. For slurries with high-hardness particles (such as quartz sand-rich ore pulp), the pump’s wetted components should be made of high-chromium cast iron (e.g., Cr27 material), whose wear resistance is 3-5 times higher than ordinary cast iron. In a gold mine tailings conveyance project, the initial use of an ordinary material pump led to monthly impeller replacements due to quartz particles in the tailings. Switching to a high-chromium cast iron pump extended the service life to over six months.
Medium Corrosiveness and pH Value: When the slurry pH is lower than 4 or higher than 10, corrosion-resistant design must be considered. For example, sulfuric acid slurry conveyance requires rubber-lined pumps (butyl rubber or chloroprene rubber) to resist acid corrosion through the chemical inertness of rubber. Alkaline ash slurry conveyance can use stainless steel (e.g., 316L) to prevent alkali-induced metal surface corrosion. Additionally, for media containing chloride ions, pay special attention to intergranular corrosion of stainless steel, and consider using duplex stainless steel or titanium alloy materials when necessary.
7. Installation and Environment: Elements for Scene Adaptation in Slurry Pump Selection
Installation conditions and environmental factors, often overlooked, are crucial for selection. To adapt to special scenarios when considering how to select a slurry pump, pay attention to:
Space Limitations and Layout Requirements: In underground mines or compact plants with limited installation space, choose horizontal centrifugal pumps or small vertical pumps to avoid installation difficulties due to the large size of traditional pumps. For example, in a slurry conveyance chamber of an underground mine, a vertical slurry pump was selected due to height restrictions, with the motor placed above ground and the pump body extending below the chamber, satisfying conveyance needs while saving space.
Impact of Ambient Temperature and Altitude: High-temperature environments (such as near boiler houses) can cause difficult pump body heat dissipation, requiring the selection of pump types with cooling systems (e.g., water-cooled bearing boxes). At altitudes exceeding 1,000 meters, reduced atmospheric pressure affects the pump’s suction performance, necessitating re-calculation of NPSH and, if necessary, adopting self-priming structures or increasing the liquid level height at the installation position.
8. Industry-Differentiated Selection: Scenario-Specific Solutions for How to Select a Slurry Pump
Slurry characteristics vary significantly across industries, requiring "localized" selection:
Mining Industry: Ore pulps often contain coarse particles and high-hardness minerals, so selection prioritizes wear resistance. High-chromium cast iron pumps are preferred, with impeller passage width matching the maximum particle size (typically 1/3-1/2 of the pump outlet diameter). For example, in the conveyance of iron ore pulp after magnetic separation, due to particle sizes of 2-5 mm, large-passage impeller pumps must be selected while considering the impact of pulp concentration fluctuations (30%-60%) on flow.
Power Industry: Desulfurization slurries contain gypsum particles and acidic media (pH 4-6), requiring selection to balance wear and corrosion resistance. Rubber-lined pumps or stainless steel pumps are commonly used, with attention to the head requirement (typically 50-80 meters) and efficiency requirement (≥75%) of the desulfurization system. In a power plant desulfurization retrofit project, replacing ordinary cast iron pumps with rubber-lined pumps solved corrosion issues and extended pump life from 3 months to over 1 year.
Metallurgy Industry: Metallurgical slurries often contain heavy metal ions and high-temperature media. For example, conveying acidic leachate in zinc smelting requires fluoro-rubber-lined pumps resistant to strong acids, while considering the impact of temperature (60-90°C) on rubber materials and adding cooling measures when necessary.
9. Selection Pitfalls and Decision Tips: A Guide to Avoiding Mistakes in How to Select a Slurry Pump
When considering how to select a slurry pump, avoid the following common pitfalls:
Blind Selection Focusing on Parameters Over Operating Conditions: Some enterprises select standard pump types based solely on flow and head parameters, ignoring medium characteristics, which leads to equipment "inadaptability." For example, a company chose an ordinary pump based on 100 m³/h flow and 50 meters head to convey high-concentration ash slurry, resulting in weekly impeller blockages requiring shutdown for cleaning. Eventually, they had to replace it with a large-passage pump, increasing costs.
Neglecting Life Cycle Costs: Pumps with low initial investment may have higher total cost of ownership (TCO) due to low efficiency and frequent maintenance. It is recommended to use the "life cycle cost method" for scheme comparison: Pump A costs 100,000 yuan to purchase, has 70% efficiency, annual electricity costs of 50,000 yuan, and maintenance costs of 10,000 yuan; Pump B costs 150,000 yuan to purchase, has 85% efficiency, annual electricity costs of 30,000 yuan, and maintenance costs of 5,000 yuan. Pump B can save costs through energy efficiency and maintenance within two years, resulting in lower total investment.
Conclusion: A Systematic Methodology for Scientific Slurry Pump Selection
The answer to how to select a slurry pump lies in a four-dimensional model of "parameter analysis - operating condition adaptation - industry characteristics - life cycle cost." From the basic calculation of flow and head to the in-depth matching of materials and cavitation resistance, and then to the differentiated consideration of industry scenarios, each link constitutes an important puzzle piece of the selection decision. Under the trend of industrial intelligence, future slurry pumps will develop towards "self-diagnosis and self-adaptation." However, regardless of technological iterations, parameter analysis and systematic thinking based on operational condition understanding will always remain the core principles for selecting the "most suitable pump." Only by deeply integrating equipment performance with production needs can we lay a solid foundation for industrial production and achieve the optimal balance between efficiency and cost.
